750W–5500W DC pumps · head up to 355 m · flow up to 60 m³/h · matched MPPT controller included
Where the grid does not reach — or the diesel bill keeps climbing — a solar pump is the cheapest water you will ever lift. Sunlight is free, there is no fuel to buy, no engine oil to change and no pull-start in the rain: the panel feeds the pump through an MPPT controller, and the water is stored in a tank instead of a battery.

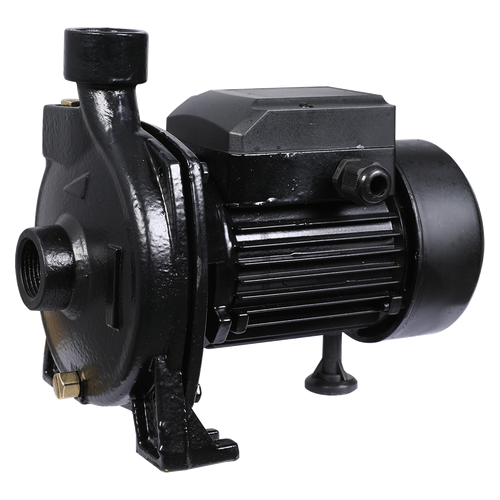

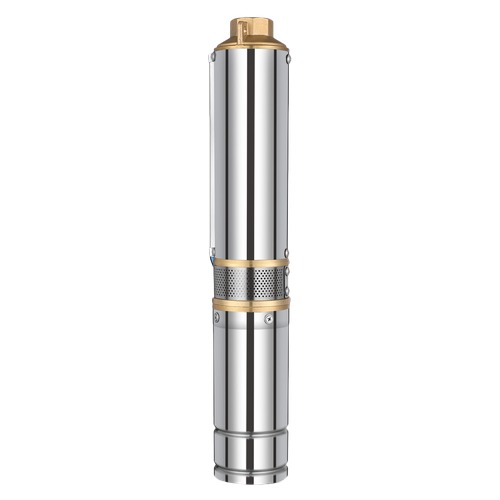

We supply two families. Stainless-steel submersible pumps (3" and 4") hang inside the borehole and push water up from as deep as 355 m — from a 750W screw pump for deep, sandy wells up to a 5500W high-head unit for projects. Cast-iron surface centrifugal pumps sit above ground beside the river, canal or tank and move large volumes at low lift, up to 60 m³/h. Every model ships as a complete pump set with its matched MPPT controller and accessory kit — you source the panels and mounting structure locally, and we size the array for you.
| Model | Type | Power | Voltage (V DC) | Max Flow | Max Head | Outlet | Impeller |
|---|---|---|---|---|---|---|---|

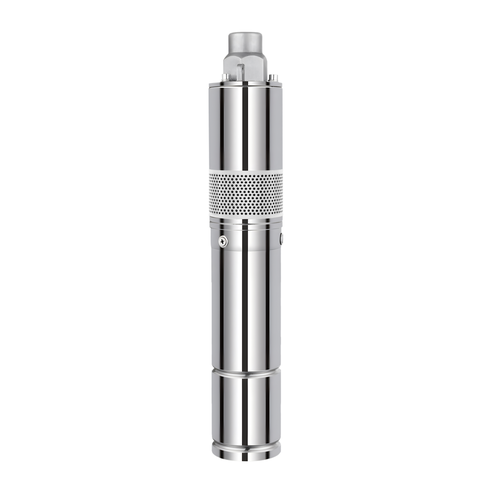

| DH-3DSS2-150-72-750-A/D | 3" Screw submersible | 750 W | 72 | 2 m³/h | 150 m | 0.75" | Stainless screw |

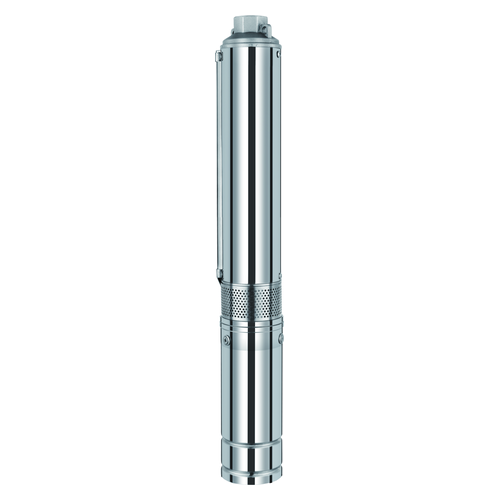

| DH-4DPC6.5-135-150-1500-A/D | 4" Submersible | 1500 W | 150 | 6.5 m³/h | 135 m | 1.25" | Plastic |
| DH-4DPC14-125-200-2200-A/D | 4" Submersible | 2200 W | 200 | 14 m³/h | 125 m | 2" | Plastic |

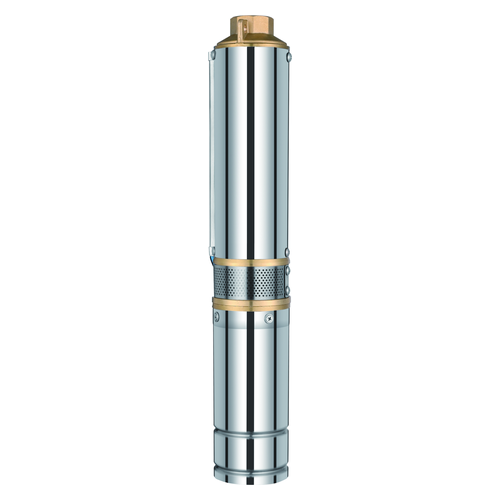

| DH-4DPC36-45-200-2200-A/D | 4" Submersible | 2200 W | 200 | 36 m³/h | 45 m | 3" | Plastic |

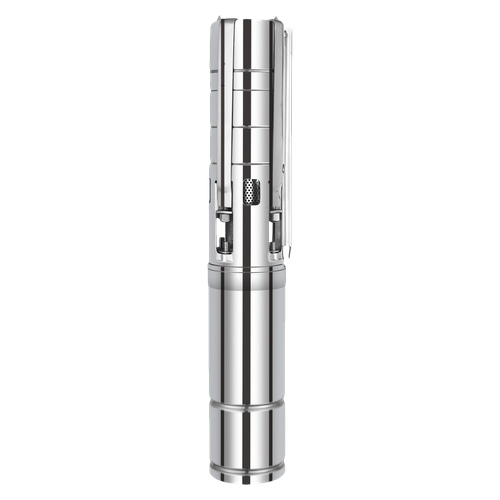

| DH-4DSC9.5-275-300-4000-A/D | 4" Submersible | 4000 W | 300 | 9.5 m³/h | 275 m | 2" | Stainless steel |

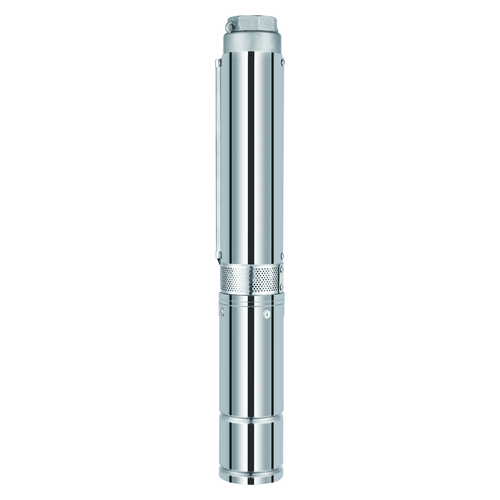

| DH-4DPC7-355-380/520-5500-A/D | 4" Submersible | 5500 W | 380/520 | 7 m³/h | 355 m | 1.25" | Plastic |

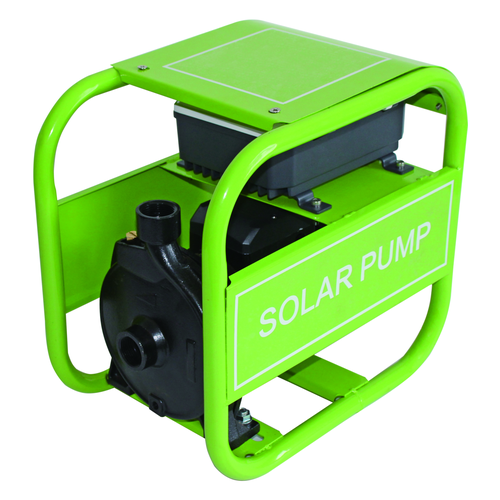

| DH-DCPM21-14-72-750-A/D | Surface centrifugal | 750 W | 72 | 21 m³/h | 14 m | 2" | Cast iron |

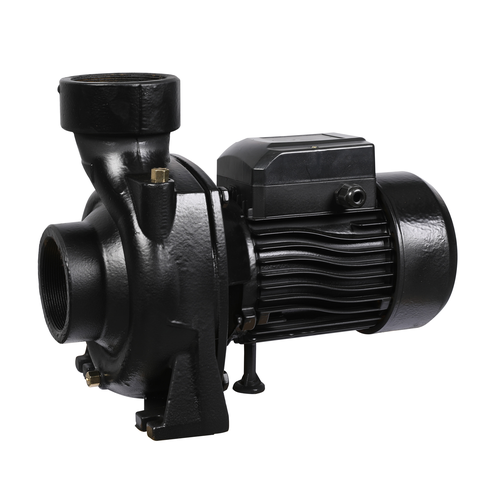

| DH-DCPM27-21-110-1500-A/D | Surface centrifugal | 1500 W | 110 | 27 m³/h | 21 m | 2" | Cast iron |

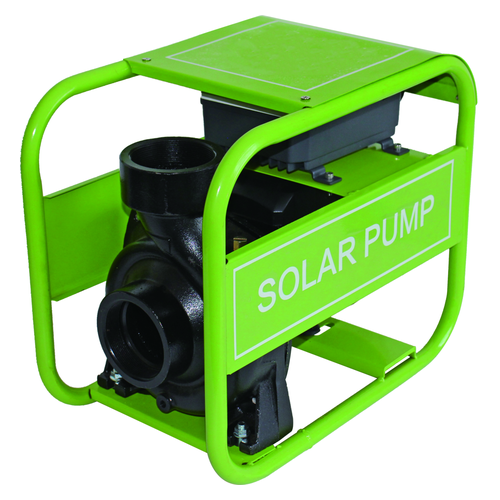

| DH-DCPM50-17-110-1500-A/D | Surface centrifugal | 1500 W | 110 | 50 m³/h | 17 m | 3" | Cast iron |
| DH-DCPM60-20-200-2200-A/D | Surface centrifugal | 2200 W | 200 | 60 m³/h | 20 m | 4" | Cast iron |
These are the most-requested models; more power ratings and impeller options are available. Ask us for the full datasheet of any model — specifications are confirmed in writing before every order.
Drinking water for villages and homesteads, livestock watering in grazing country, irrigation for vegetables, maize, orchards and tobacco fields, filling spray tanks and fish ponds, and pressure supply for drip and sprinkler systems. Submersible models serve boreholes; surface models sit beside rivers, canals and tanks. One solar array can serve a farm's whole water calendar — and the same pumps pair well with our generators as backup for cloudy weeks.
Send us your borehole depth, lift height and daily water demand — we recommend the model, size the panel array and quote the pump set, usually within one working day. Pump set with controller, single set or container.
Three numbers decide it: how deep the water sits (dynamic water level), how far you must lift it, and how many cubic metres per day you need. As a rule, a 750W screw pump handles very deep wells with low flow, a 2200W 4-inch pump covers most farm boreholes, and 4000W–5500W models serve deep or high-demand projects. Send us your water depth, lift height and daily water demand — we recommend a model, usually within one working day.
No. The pumps run directly on DC power from solar panels through an MPPT controller, so water is pumped whenever the sun shines and stored in a tank instead of a battery. This removes the most expensive and shortest-lived part of a solar water system. AC/DC dual models can also run from mains power or a generator when you need water after dark.
Every price is for a complete pump set: the pump end, the motor and its factory-matched MPPT controller, plus the standard accessory kit (output cable, clamps and connectors). Solar panels and mounting structure are not included. Panels are bulky, fragile and expensive to ship, and local suppliers at your end can usually beat an imported price while giving you local warranty — so we size the array for you and you buy it locally. Tell us your borehole depth and daily water demand and we will tell you exactly how many panels and what wattage you need.
One set. Single-unit trial orders and mixed-container orders are welcome. We also offer OEM: your own brand name, logo, nameplate, packaging and manual can be applied to any model in the range.
