Genuine Ricardo, Weichai, Yuchai, SDEC and Cummins engines — open frame, silent canopy or mobile, parallel-ready

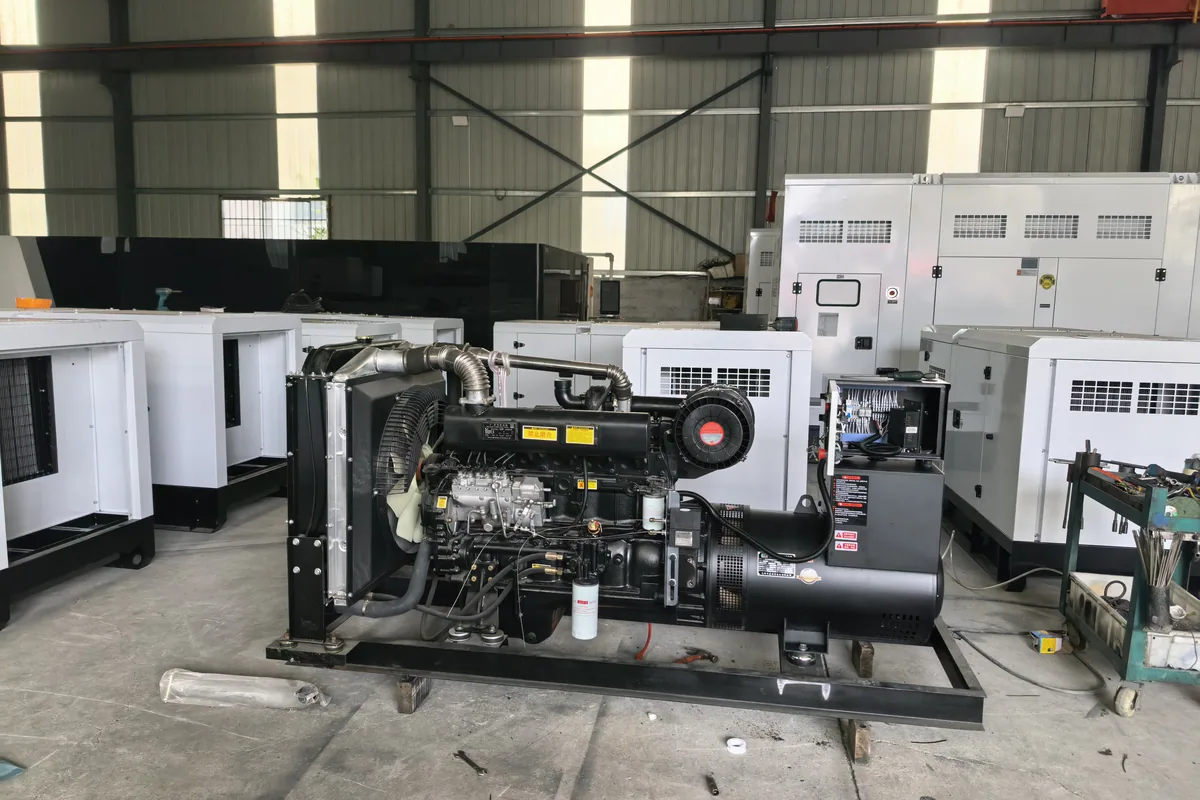

Photographed at our partner plant — assembly floor and finished canopies awaiting shipment.
When the grid stops — or was never there — work stops with it. We supply diesel generator sets from 2–8 kVA portable petrol units up to 3,000 kVA power-plant diesel units: a 10 kW set running a farm workshop, a 50 kW set keeping a curing facility and offices alive, a 400 kW set carrying a mining camp, or a bank of sets in parallel powering a whole site. Choose the engine your technicians can actually service — Ricardo, Weichai, Yuchai, SDEC or Cummins — and the enclosure your site needs: open frame for the worksite, sound-attenuated canopy for camps and towns, or mobile trailer versions that move with the job. Spare parts ship worldwide together with every set.
A canopy is not one thickness of steel. The enclosure panels and the base frame carry completely different loads, so they are specified differently — 2 mm for the enclosure, 4 mm for the base frame.

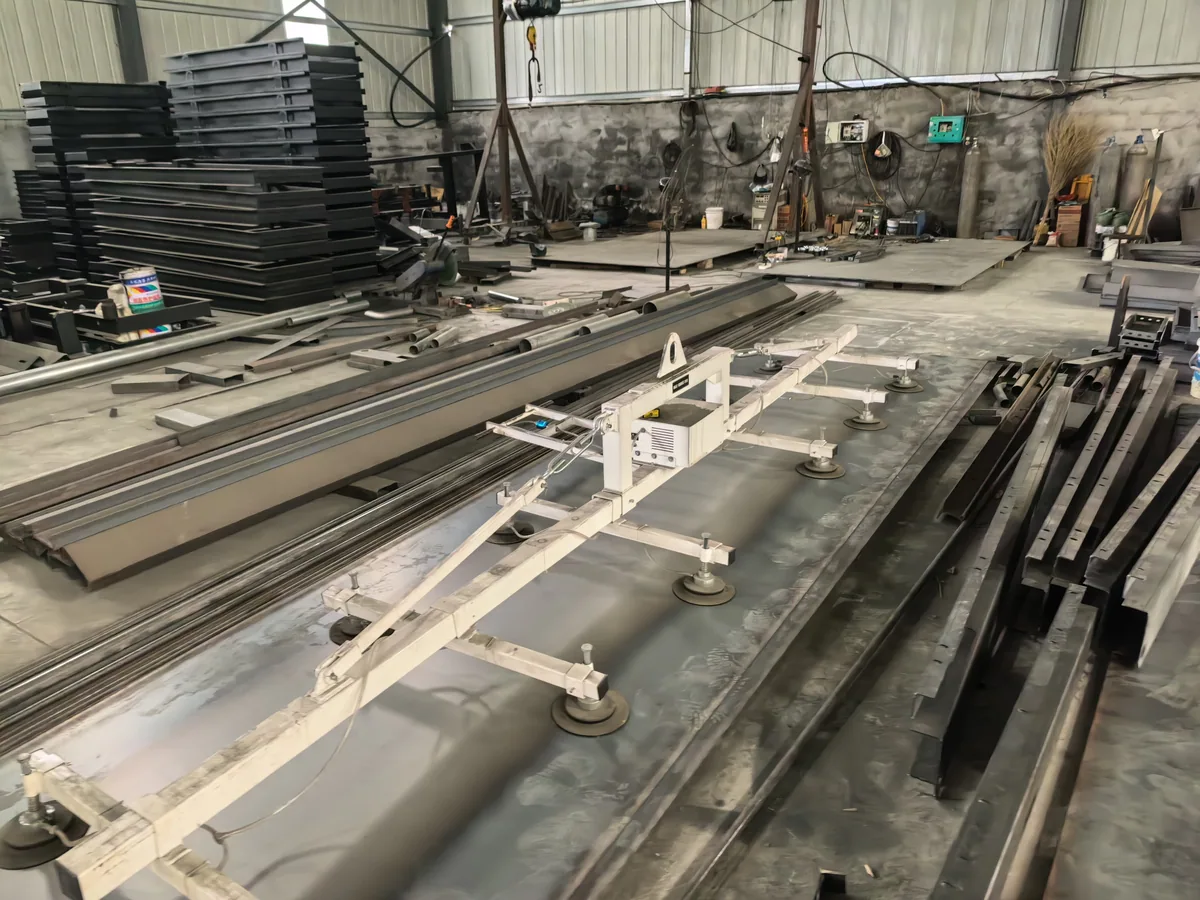

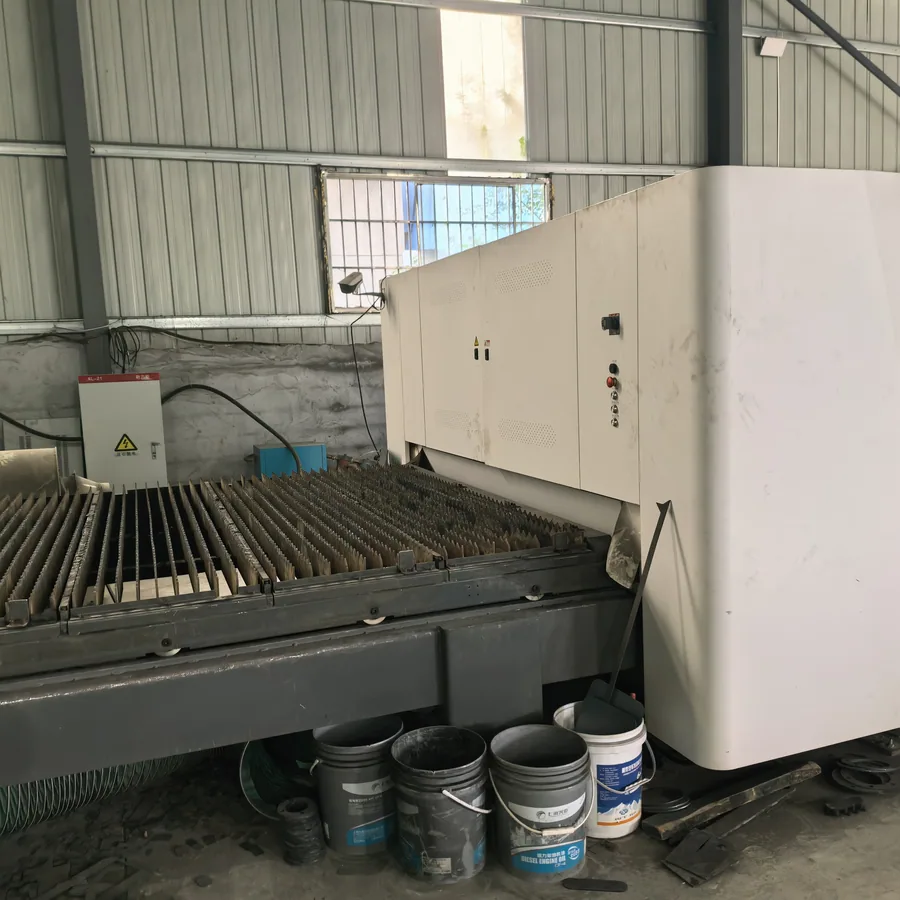

The plant cuts and folds its own panels from raw sheet on its own laser bed. The reason is unglamorous: it is the only way to be sure each position comes out at the thickness it was specified at, from material you have verified. When panel work is subcontracted, thickness is where it gets shaved — a little on the enclosure, a little on the frame, and the canopy that looked right in the photo arrives dented after one season on a rough site.
Same for the engine: every set ships with the engine nameplate and model plate intact, so what is written on your quotation is what is bolted inside the canopy. Send us a photo of the plate when the set lands and check it yourself.
We are an export company based in Linyi, Shandong — we do not own a factory and we do not pretend to. What we do is choose the plant, the model and the specification, and stand behind what ships. Our diesel generator sets are assembled and load-tested at a long-standing generator partner plant, and you are welcome to see it before you buy:
Huangshan East Street 46, Xin’an Subdistrict, Anqiu, Weifang, Shandong, China
山东省潍坊市安丘市新安街道磨埠社区黄山东街46号
This is a generator factory — it builds generator sets, not the farm machinery in our other lines, which comes from separate workshops. Enclosure panels are cut and folded on site from raw sheet, and every set is run on load before it is crated.
Why publish the address at all? Because most buyers have been burned by a trading company that will not say where anything comes from. If you want to inspect, or send your own engineer, say so when you enquire and we will arrange the visit — you will see the set that carries your name on the quotation being built and tested, and you can check the engine nameplate yourself when the crate lands.
| Engine Brand | Single-Unit Range | Typical Duty |
|---|---|---|
| Portable petrol | 3–8 kVA | Light tools, lights, home backup — supplied on request |
| Weichai / Ricardo | 10–150 kW | Farms, workshops, small commercial |
| Yuchai | 40–560 kW (50–700 kVA) | Construction, commercial backup |
| SDEC (Shanghai) | 68–610 kW (85–760 kVA) | Industrial standby |
| Weichai / Wuxi (large) | 259–900 kW (325–1,130 kVA) | Mines, plants, heavy industry |
| Perkins | 7–1,811 kW | Global parts network, prime & standby |
| Cummins (DCEC / CCEC) | 20–1,200 kW | Continuous & standby duty |
| Volvo Penta / Doosan | 75–550 kW | Standby power, EU emission options |
| Mitsubishi / MTU | 600–2,460 kW | Power plants, mining, heavy industry |
Ranges show typical model coverage. Exact specifications and full datasheets are confirmed with you before every order — tell us the load, the hours per day and your local voltage, and we will size the set.
Above 250 kVA the choice stops being about the badge and starts being about three numbers: how many litres an hour it drinks at the load you actually run, whether it fits through your gate and your container, and how many you can ship in one 40 ft high-cube. The table below is our working range for that band — real models, real dimensions, at power factor 0.8.
| Class | Engine | Model | Output kW | Output kVA | Fuel @75% load L/h | L × W × H mm | Weight kg | Per 40′ HQ |
|---|---|---|---|---|---|---|---|---|
| 250 kVA | Yuchai | KTZ180YC | 185 | 231 | 35.5 | 3050 × 1150 × 1800 | 2300 | 3 |
| 250 kVA | SDEC (Shangchai) | KTZ200SC | 206 | 258 | 36.8 | 2600 × 1150 × 1800 | 2500 | 4 |
| 300 kVA | Yuchai | KTZ220YC | 235 | 294 | 40.9 | 3050 × 1150 × 1800 | 2400 | 3 |
| 300 kVA | SDEC (Shangchai) | KTZ250SC | 250 | 312 | 44.6 | 2900 × 1150 × 1800 | 3500 | 4 |
| 300 kVA | Weichai / Wuxi | KTZ230WD | 259 | 324 | 45.8 | 2750 × 1200 × 1800 | 2400 | 4 |
| 350 kVA | Yuchai | KTZ250YC | 281 | 351 | 48.9 | 3050 × 1150 × 1800 | 2450 | 3 |
| 350 kVA | SDEC (Shangchai) | KTZ250SC | 250 | 312 | 44.6 | 2900 × 1150 × 1800 | 3500 | 4 |
| 350 kVA | Weichai / Wuxi | KTZ250WD | 284 | 355 | 50.2 | 2800 × 1200 × 1800 | 2550 | 4 |
| 400 kVA | Yuchai | KTZ300YC | 321 | 401 | 55.9 | 3050 × 1150 × 1800 | 2500 | 3 |
| 400 kVA | SDEC (Shangchai) | KTZ300SC | 338 | 422 | 59.8 | 3050 × 1250 × 1850 | 3700 | 3 |
| 400 kVA | Weichai / Wuxi | KTZ280WD | 308 | 385 | 54.5 | 2900 × 1200 × 1800 | 2600 | 4 |
| 500 kVA | Yuchai | KTZ400YC | 389 | 486 | 68.8 | 3200 × 1200 × 2000 | 3750 | 3 |
| 500 kVA | SDEC (Shangchai) | KTZ400SC | 446 | 558 | 81.6 | 3200 × 1200 × 2000 | 3750 | 3 |
| 500 kVA | Weichai / Wuxi | KTZ350WD | 388 | 485 | 68.6 | 3100 × 1200 × 1800 | 2700 | 3 |
| 600 kVA | Yuchai | KTZ440YC | 441 | 551 | 75.6 | 3200 × 1200 × 2000 | 3750 | 3 |
| 600 kVA | SDEC (Shangchai) | KTZ450SC | 505 | 631 | 92.4 | 3200 × 1200 × 2000 | 3750 | 3 |
| 600 kVA | Weichai / Wuxi | KTZ430WD | 475 | 594 | 84.0 | 3400 × 1400 × 2000 | 3800 | 3 |
| 800 kVA | Yuchai | KTZ550YC | 561 | 701 | 112.7 | 3500 × 1250 × 2100 | 4500 | 3 |
| 800 kVA | SDEC (Shangchai) | KTZ600SC | 610 | 762 | 111.7 | 3600 × 1300 × 2300 | 4600 | 3 |
| 800 kVA | Weichai / Wuxi | KTZ580WD | 646 | 808 | 114.2 | 3450 × 1450 × 2100 | 4050 | 3 |
| 1000 kVA | Weichai / Wuxi | KTZ680WD | 750 | 938 | 131.2 | 3450 × 1450 × 2100 | 5500 | 3 |
Ratings at power factor 0.8, 50 Hz, 400/230 V. Fuel consumption is diesel litres per hour at 75% load — the figure that matters, because almost nobody runs a set flat out all day. Every set in this band fits a standard 40 ft high-cube without open-top or flat-rack freight. Above 1,000 kVA we quote per project; tell us the load and we will size it. See the full 250–1,000 kVA page — sizing by site type, fuel per day and container loading
Four one-page sheets with the numbers you actually need to shortlist a set — model by model, prime and standby kW, derived kVA, dimensions, weight and fuel burn. No form, no sign-up: click and it opens.
40–560 kW · 50–700 kVA. The most widely serviced engine family across Africa and South-East Asia.
PDF · 1.3 MB68–610 kW · 85–760 kVA. Industrial standby and continuous duty.
PDF · 1.5 MB259–900 kW · 325–1,130 kVA. The large-engine band for mines and plants.
PDF · 0.7 MBThree engine makes side by side at each rating, with fuel burn and container loading.
PDF · 1.4 MBMining camps and exploration sites where power is the first thing to arrive, farms running irrigation pumps and curing barns off-grid, workshops and construction sites, clinics, shops and homes that need standby during outages, and telecom or cold-chain loads that cannot stop. Pair a set with our agricultural water pumps for a complete off-grid irrigation setup, and mix machines, spare parts and generators in one container to spread freight cost.
Tell us what you need to power, for how many hours a day, and your local voltage — we reply with the right set and an exact quotation, usually within one working day. Single-set orders welcome.
Buyers in Russia, Uzbekistan and Kazakhstan — message us on Telegram @leon_dingheng.
Add up the running watts of everything you want to power at once, then add 25-30% for motor starting. As a rough guide: a 3-inch irrigation pump runs comfortably on a 5 kVA set; a farm house or small workshop with lights, fridge and tools needs 8-10 kVA; mining camps, workshops and curing facilities typically start at 20-50 kVA; whole-site or production power runs from 100 kVA up, often with two sets in parallel. Send us your equipment list and we will size the set for you, usually within one working day.
Genuine Ricardo, Weichai, Yuchai, SDEC, Cummins, Perkins and MTU engines, with brushless alternators and AVR regulation. Brand availability varies by model and order size, and the exact datasheet is confirmed with you before every order — and every set ships with its engine nameplate intact, so you can check the model yourself when the crate lands.
Yes. Canopy panels are cut and folded at the factory from 2 mm steel for the enclosure and 4 mm plate for the base frame, so each position is held to the thickness it was specified at — outsourced panel work is normally where thickness quietly drops. Canopies are fully enclosed, rain/snow/dust proof, lined with PUR flame-retardant acoustic foam and fitted with high-efficiency resistive silencers. Open-frame sets remain the economical choice for worksites.
Yes. The cold-climate package adds a coolant jacket heater, engine oil and battery blanket heaters, intake air pre-heating, low-temperature coolant and oil, insulated canopy lining and cold-rated cabling — reliable starting down to −40 °C, for Siberia, the Russian Far East and Central Asian winters. The 50 °C tropical package fits a radiator sized for 50 °C ambient instead of the usual 40 °C, with sand-resistant air filtration; we fit it as standard for the Gulf, the Sahel and southern African summers.
Most of our sets are named and rated in kW, but most buyers and most site loads are specified in kVA, and the two are not the same number. At the standard power factor of 0.8: kVA = kW ÷ 0.8, so a 400 kW set is a 500 kVA set. If you already know your load in kW, give us that and we will do the conversion; if you have been quoted elsewhere, check whether the number you were given is kW or kVA before you compare prices — a "500" that is actually 500 kW is a much bigger machine than a 500 kVA one. Every datasheet we send shows both.
Yes. Intelligent parallel control cabinets let two or more sets run as one plant, so you can start with the capacity you need and add sets as the site grows. ATS and auto-start control panels are also available.
Price depends on rated power, engine brand, canopy or open frame, start system and order quantity. We quote direct from the factory — tell us the load you need to run, the hours per day and your local voltage, and you will get an exact quotation, usually within one working day.
Oil intervals, load management and fuel care decide whether a genset lasts 5 years or 20. Our complete checklist walks you through it.
Read our diesel generator maintenance guide
